EVG T8 Tube light 1200mm 1500mm(YC-JT8)

Description

ballast compatible led tubes is used AL to heat dissipation and offer 3 years warranty

ballast compatible led tubes Basic info

1. Power: 18W 24W
2. Working voltage: AC100-240V
3. Lenght: Dia 26*1200MM/1500MM
4. Luminous flux: 110-120LM/W
5. Led chip: Epistar
6. Led quantity: SMD2835 96pcs/120pcs
7. Cover: Available milk white cover & clear cover & strip cover
8. Base type: G13
9. Material: High grade 6063 Extruded Alu

compatible ballast brand list

ballast compatible led tubes brand
Europe/Australia/Japan
No.	Brand	Model	No.	Brand	Model
1	Osram	QTP8 2×58	40	Tridonic	PC 2×58 T8 PRO S1
2	Osram	QTP8 1×58	41	Tridonic	PC 2×36 T8 PRO S1
3	Osram	QT-FIT8 2×58-70	42	Tridonic	PC 4/18 T8 PRO
4	Osram	QT-FIT8 2×36	43	Tridonic	PCA 2*58 T8EXCEL ONE4ALL 1P
5	Osram	QTP 1*58	44	Tridonic	PC 2/58 T8 INDUSTRY
6	Osram	QTP 2*L58W	45	Tridonic	T8 1*58W
7	Osram	QTP 2*36W	46	Tridonic	PC 1/36 TCLPRO
8	Osram	QTP 4x32T8/UNVISN-SC	47	ABB	EVG 1×58 CF
9	Osram	QTPS 1*58	48	ABB	GZAH 821 107 P0158
10	Osram	QT-FIT8 1*18	49	ABB	EVG 1×58 CF
11	Osram	QT-FIT8 1*58-70	50	ABB	GZAH 821 107 P0258
12	Osram	QT-FIT8 1*36	51	ABB	EVG 2*58 CF
13	Osram	QT-FIT8 3×18, 4×18	52	ABB	EVG 1*58 T8CLP
14	Sylvania	Sylvania Luminaires 1*36W	53	ABB	EVG 1*58 CF
15	Sylvania	QTP 2*32T8/UNV ISN-SC	54	ABB	EVG 2*58 T8CLP
16	Sylvania	5LI 5011-1N	55	BAG	MLS39.2SR-11
17	Sylvania	QTP 2x32T8/UNV ISN-SC	56	BAG	ECS36. 1FX-11
18	Philips	HF-P 136	57	BAG	T8 58.2.23031E
19	Philips	HF-P 254/255 TL5 HO/PL-L	58	BAG	ECS58. 2FX-11
20	Philips	HF-P 170 TLD E11	59	BAG	1. T8 58W 2. T8 36W
21	Philips	HF-B 158 TLD E11 220-240	60	BAG	SCS58 1S-01
		1XTL-D 58W/PL-L55W Cold Start	61	BAG	SCS58 2SR
22	Philips	HF-B 258 TLD E11 220-240
		2XTL-D 58W/PL-L55W Cold Start	62	BAG	BIAIG ELECTRONIC T8 58W
23	Philips	HF-P 258 TL-D III IDC
24	Philips	Philips Luminaires 1*36W	63	Panasonic	FZ32197949
25	Philips	HF-R 258 TLD EII(0-10V)	64	Panasonic	FZ32297991
26	Philips	HF-P 158 TL-D111 IDC	65	Siemens	5LI 5011-1N
27	Philips	HF-B 158 TLD EII	66	Siemens	Economic SLZ 5031-2
28	Philips	HF-P 258 TL-D111 1DC	67	CEAG	N-EVG 58W VCG-S
29	Philips	HF-B 258 TLD EII	68	CEAG	N-EVG 36W VCG-S
30	Philips	ICN-4P32-N	69	NEC	FRA-42SM26-SE
31	Toshiba	FMK-456205	70	NEC	FIK10CMF032N-L33ND
32	Toshiba	FMB-2-326225	71	Ultramax	GE432MAX-G-N-DIYB
33	Toshiba	FMB-326221 36-35W	72	Ultramax	GE232MAX-G-N-DIYB
34	Helvar	Electronic Ballast EL 3/418S	73	Luxalite	LEBT 8236F
35	Helvar	Electronic Ballast EL 2×36/40S	74	Mitsubishi	FT32K2QUA25E-9
36	Helvar	Electronic Ballast EL 2x58S	75	PRO	GE259MV-N-DIY
37	Helvar	Electronic Ballast EL 1x58S	76	Triad	B232IUNVHP-N
38	Helvar	Electronic Ballast EL 2*55W	77	RDSMI	Electronic Ballast RAS-T8-158P
39	Helvar	Electronic Ballast EL 2*58W

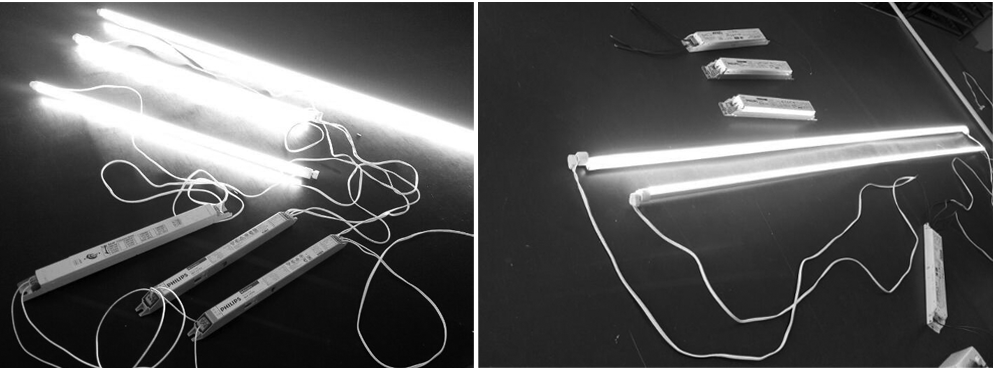

EVG t8 test picture

Advantage:
1. Excellent performance: High light efficiency. Energy saving up to 70%. More than 35000hours lifespan.
2. Good lighting effect: Special design makes balanced lighting effect. Non dark area, non light spot.
3. High quality: High thermal conductivity heat sink. International brand LED (Epistar).
4. Long warranty: 3years

Features:
1. Using high brightness SMD2835 LED.
2. Pure aluminum heat sink, good heat dissipation ability
3. CE driver insures tube working steadily.
4. Clear cover, milky cover are available.

Application:
Underground garage lighting engineering, underground parking lot lighting engineering, lighting engineering, hospital garage opping lighting engineering, Banks, home indoor lighting ，and so on.

Produce & delivery info
1. Lead time: 5-7workdays
2. Delivery info: By sea & FEDEX & by air
