Retrofit LED ballast compatible T5 led tube(YC-JT5)

Retrofit LED ballast compatible T5 led tube(YC-JT5)

  • Description
  • Inquiry

EVG T5 led lamps designed to retrofit linear flourescent  lamps

EVG  T5 parameters in LED retrofit tubes are designed exactly the same as traditional FL, just with better LED light engine inside. Believe it or not. It is no need to have compatibility list in place for their use. There is also no liquid capacitor and built-in driver when working , the LED retrofit tube can not only achieve highest compatibility, but also have excellent performance in safety, reliability and energy-saving.

EVG  T5 led lamp Product specifications

Lumens Per Watt: up to 110 lm/W
Volts: Ballast Dependen
CRI: >80
Color Temperature: 2700K~6500K
Dimmable: Yes, when work with LED driver
Base Type: G5 Miniature Bi-Pin
Clear/Frosted Cover: Clear or Frosted
Material: AL+PC
Beam Angle: 140°
Driver: No built-in driver, except all-compatible type
Rated Hours: 50,000 (30,000 hours in direct AC mode)
Certifications: CE( EMC, RoHS, LVD), including EN 62776:2015

Electronic ballast compatible  T5  tube replace

T5 HE Retrofit LED tube:

8w 517mm (replace 13w HE FL)

9w 2ft retrofit( replace 14w HE FL)

13w 3ft retrofit (replace 21w HE FL)

18w 4ft retrofit (replace 28w HE FL)

21w 5ft retrofit (replace 35w HE FL)

T5 HO Retrofit LED tube:

12w 2ft retrofit( replace 24w HO FL)

18w 3ft retrofit( replace 39w HO FL)

24w 4ft retrofit( replace 39w HO FL)

24w 5ft retrofit( replace 49w HO FL)

28w 5ft retrofit( replace 80w HO FL)

EVG T5

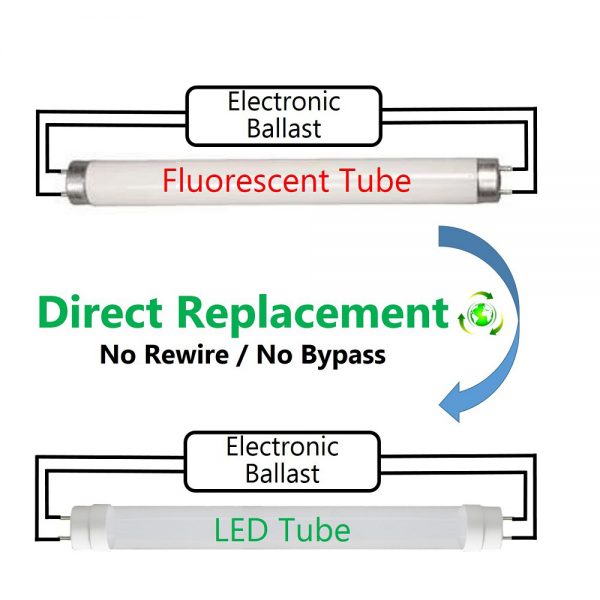

easy replace t5 tube for use in regular application:

led t5 tube retrofit tube easy of use direct replace , non-dimmable LED drive or AC main power compatibility. The end-users need not concern the applicability in luminaire, even though the fixtures have been bypassed or rewired.

Application:

office,school,factory,supermarket ,home indoor lighting ,underground garage lighting engineering, underground parking lot lighting engineering, lighting engineering, hospital garage  lighting engineering, Banks and so on.
