2g11 led tube lamp 22w (YC-2g11-22),ballast compatible

2G11 led lamp is available for compatible ballast or NON-compatible ballast.ballast bypass. this model is designed for  commercial applications,when install,need to bypass or remove the existing ballast,compatible ballast,simply install for your existing fixture,the plug and play direct replacement lamp,no need to rewiring,save labor costs

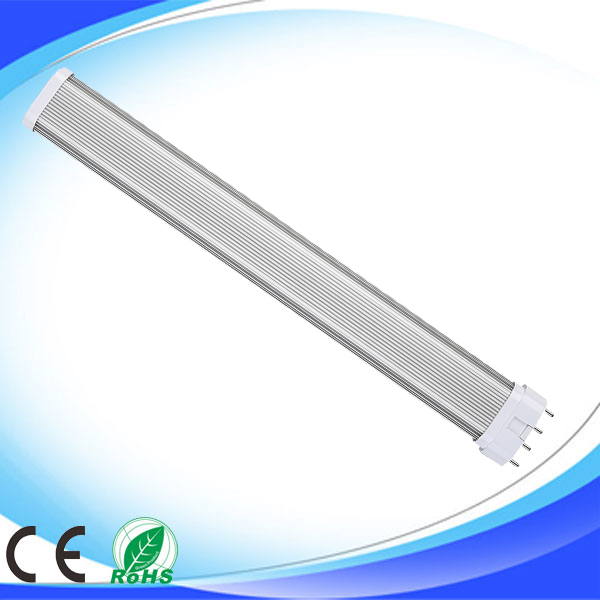

2g11 led tube lamp 22W

1.model No: yc-2g11-22                                            2.wattage: 22W

3.size: D38*545mm                                                 4.voltage: ac100-240v/50-60hz

5.material: Aluminum+PC                                     6.base type: 2G11 4PIN /GY10Q

7.led source: 28pcs SMD2835                               8.lumens:100lm/w

2g11 led lamp series

9w   2G11 4PIN       D38*227MM                           12W   2g11 4PIN   D38*322MM

18W  2g11 4PIN      D38*417MM                            22W   2g11 4pin    D38*545MM

Replacement:

9W led 2G11 lamp are replace 18W PLL fluorescent PL lamp,No ballast or driver required

12W led 2g11 bulb can replace 24W PLL fluorescent PL, no ballast or bypass ballast

18w  2g11 led retrofit can replace 36W fluorescent PL 4pin, no ballast or bypass ballast

22w  2G11 Led lamp can replace  pll-55W Fluorescent pl, no ballast or bypass ballast

Advantage

1.led 2g11 lamp installation can be either bypass ballast or compatible ballast

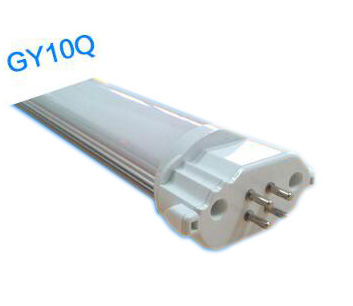

2.choose base type: 2G11 4pin or GY10Q

3.avaiable wattage from 9W to 22W with widely voltage(ac100-240v)

4.instant on to full brightness/no flickering

5.3 years warranty with up to about 70% energy saving

6.NO min order quantity restrict

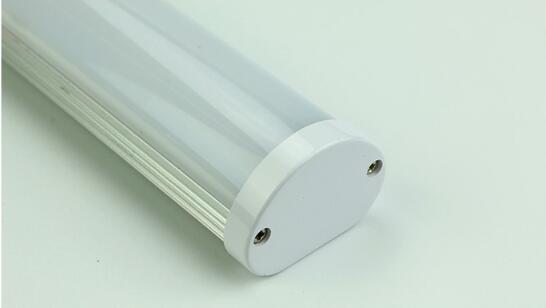

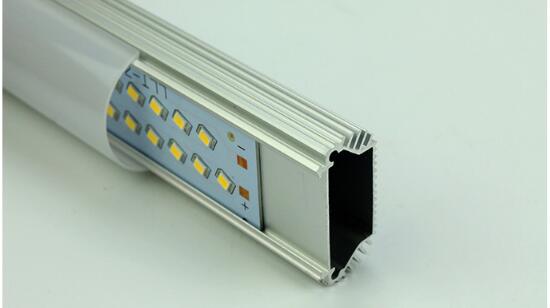

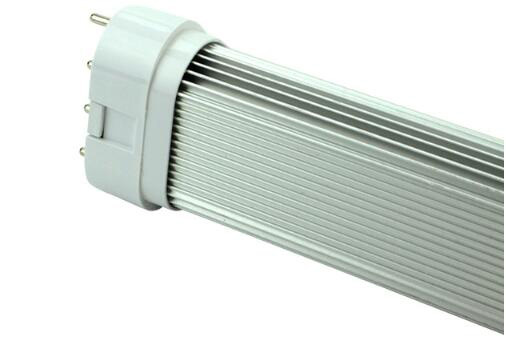

Detail picture

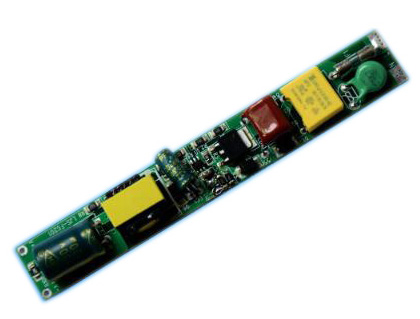

widely voltage ac100-240v with high PF driver

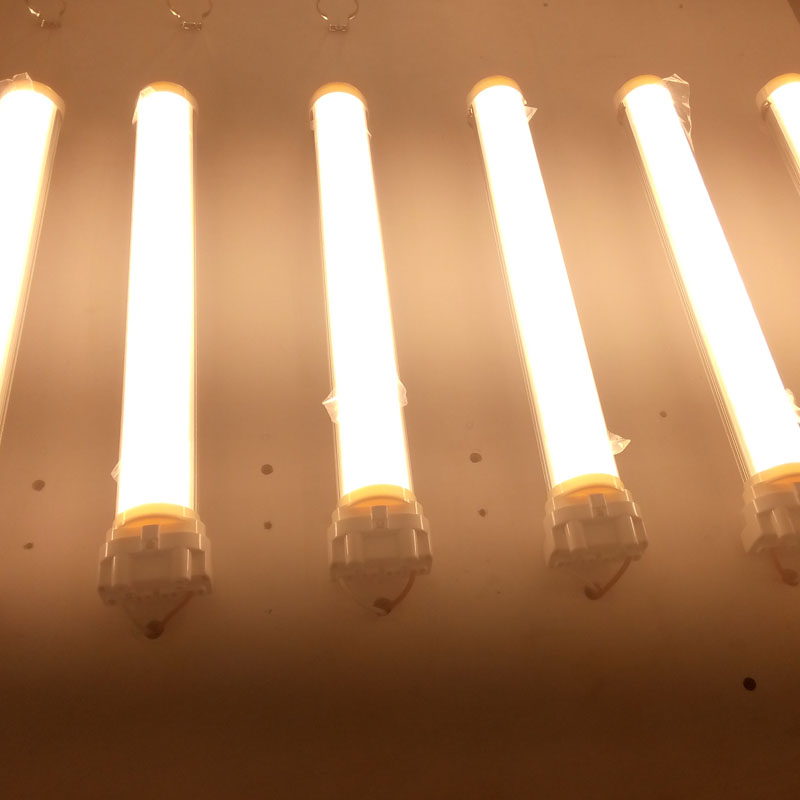

aging picture
