Led Glass Panel Downlights (YC-TDB-6)

Category:
  • Description
  • Inquiry

led glass panel downlights(YC-TDB-6)

1.Energy saving, Environmental friendly

2.Light and Soft, no electric wave,no RF interference.

3.Directly Instead of triditional device of ceiling light

4.Long service life over 50000 hours

5.Easy to intall. Dirctly contact to AC110V or AC220V,no need power supply.

6.NO UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of

broken led panel light panel glass.

7.Be equipped with short circuit, open circuit, lighting stroke, power surge,

overcurrent, over-voltage, overheat etc. protection circuit.

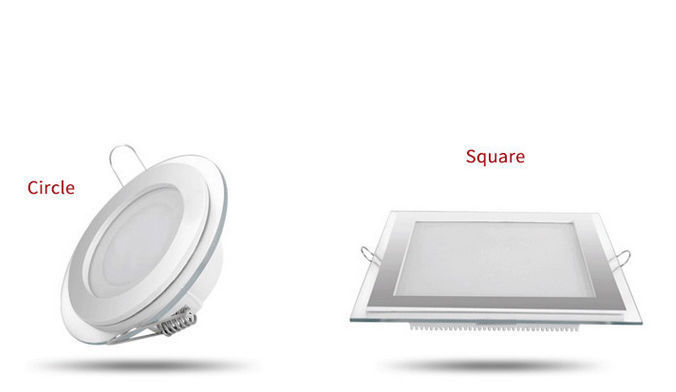

glass led downlight

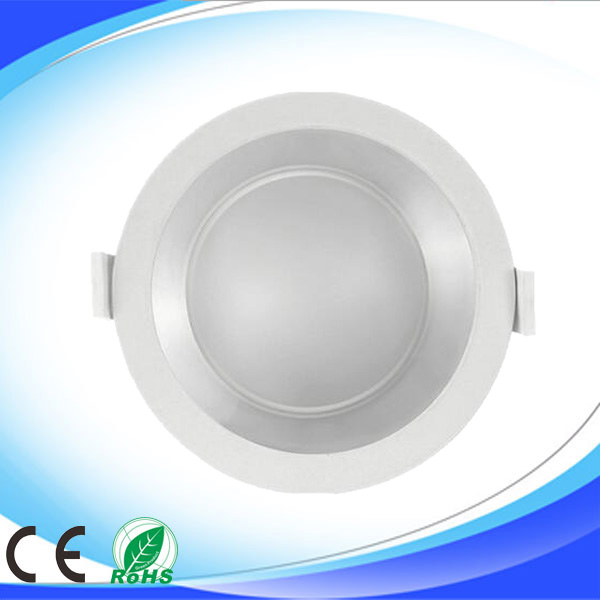

circle  led downlights  YC-TDB-6
Wattage 6W
Size Φ97*45 mm
Cut out Φ75 mm
Voltage AC 85-265V, 50/60Hz
Meterial AL+glass
Certificate CE, RoHs
Luminance Flux 600lm
IP Grade IP33
Chip SMD 2835
CRI: >80
Color Temperature 2700-6500K
Beam Angle 120 degree
Storage Temperature (- 20 ~ + 65 ) Degrees Celsius
Operating Temp (- 20 ~ + 50 ) Degrees Celsius
Driver Constant Current Isolated Driver AC85-265V
Warranty 2 years

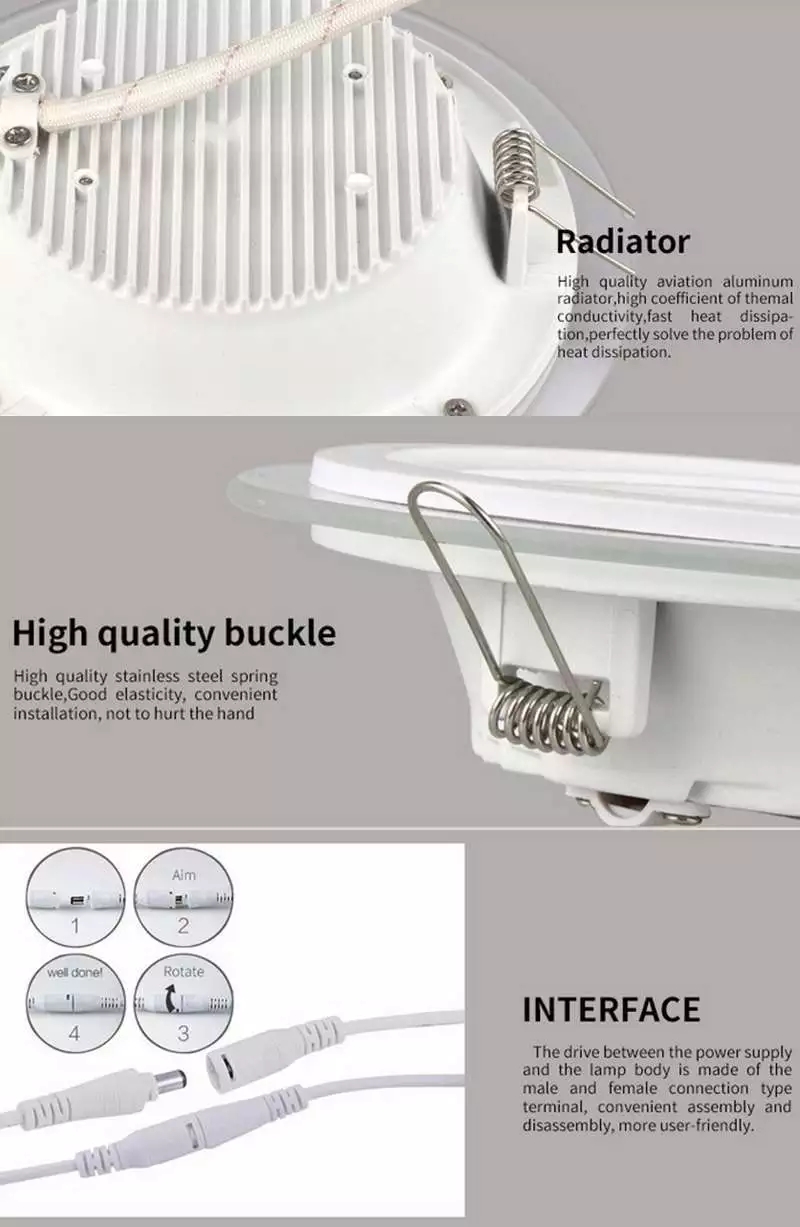

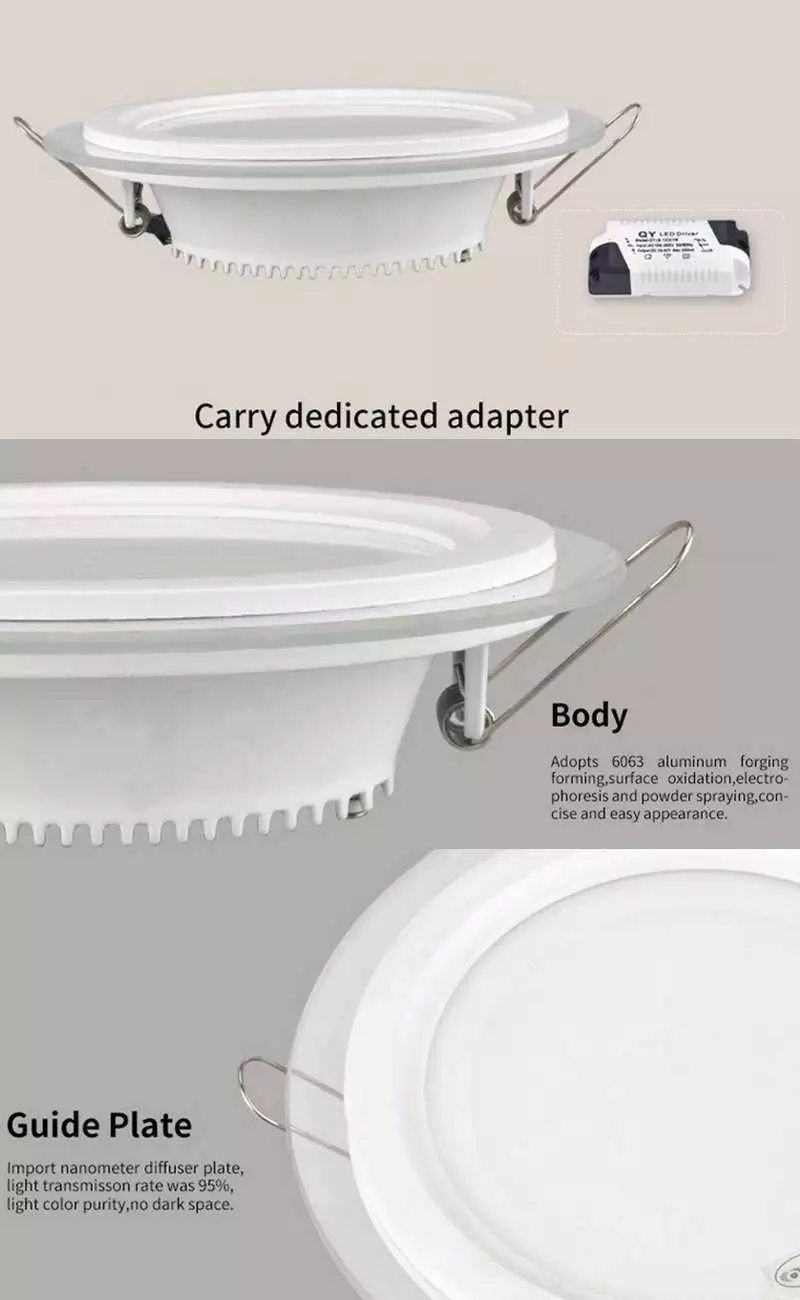

glass led down light installation pictures:   led downlights color temperatureinstallation 1glass led downlights installation

 led down lights application:

LED Panel downLight mainly used in office building,family and home,gallery,clothing store,

boutiques,art exhibition,hotel,reading room,schools,ect.
