led downlight retrofit(YC-TDB-12)

  • Description
  • Inquiry

led downlight retrofit reason

1.led downlight uk 12w can get you the same light output as a 75w incandescent bulb

2.liftspan for led downlight bulb is about 35000 hours, is rounghly 16 years of normal used

3. save about 300$ costs over the life of the light

led downlight聽 retrofit is necessary

Specs

model no:聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 YC-TDB-12
Wattage 12W
Size 桅160*45聽mm
Cut out 桅125聽mm
Voltage AC 85-265V, 50/60Hz
Meterial AL+glass
Certificate CE, RoHs
Luminance Flux 1200lm
IP Grade IP33
Chip SMD 2835
CRI: >80
Color Temperature 2700-6500K
Beam Angle 120 degree
Storage Temperature (- 20 ~ + 65 ) Degrees Celsius
Operating Temp (- 20 ~ + 50 ) Degrees Celsius
Driver Constant Current Isolated Driver AC85-265V
Warranty 2 years

product聽detail picture:

led downlight retrofit glass led downlights installation

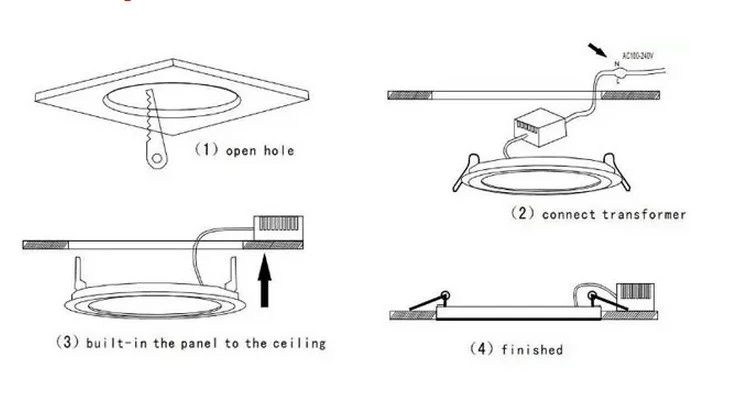

Installation manual:
