18w led Square Downlight south africa(YC-TDF-18)

18w led Square Downlight south africa(YC-TDF-18)

  • Description
  • Inquiry

18w led Square Downlight Included  complete with led driver & easy connection between the light and the driver & led ceiling downlight,supper brightness,reach 100lm/w

18w Led square downlight

1.Model Number:YC-TDB-18                                                 2. LED Light Source:SMD5630

3.Material: AL+ glass                                                              4.Size:200*200*40mm  cotout:165*165mm

5.Input Voltage(V):85-265/50-60hz                                    6.Color Temperature:3000-6000K

7.Lamp Power(W):18w                                                            8.Lamp Luminous Efficiency(lm/w):100

9. CRI (Ra>):80                                                                        10.Beam Angle(°):120

11.Working Temperature(℃):-20 – 60                               12.Working Lifetime(Hour):50000

13.IP Rating:IP44                                                                     14.Certification: CE, EMC, , LVD, RoHS

15.Place of Origin: China (Mainland)                                  16. warranty: 2 years

Features(18w led square downlight)

1.70-90% energy saving than traditional lamps.

2. Long life span that more than 50,000 hours.

3.Efficiency light guide plate ensure the uniform plane lighting.

4.Appearance looks artistic, distinguished and elegant, environment friendly,

5.Easy for installation, it could supply not only light but also pleasant feeling.

6.Input 85-265V AC, isolated constant current driver.

square led downlight(south africa) series

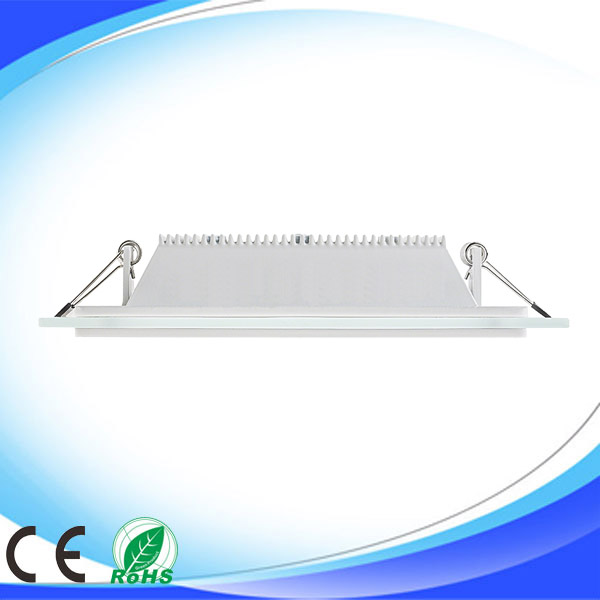

18w LED square downlight

install way


Widely used in home indoor lighting, and building decorative lighting projects. Such as : kitchen, corridor, hotels, clubs, meeting rooms, offices, hospitals, schools, commercial lighting, shopping malls, exhibition stands,

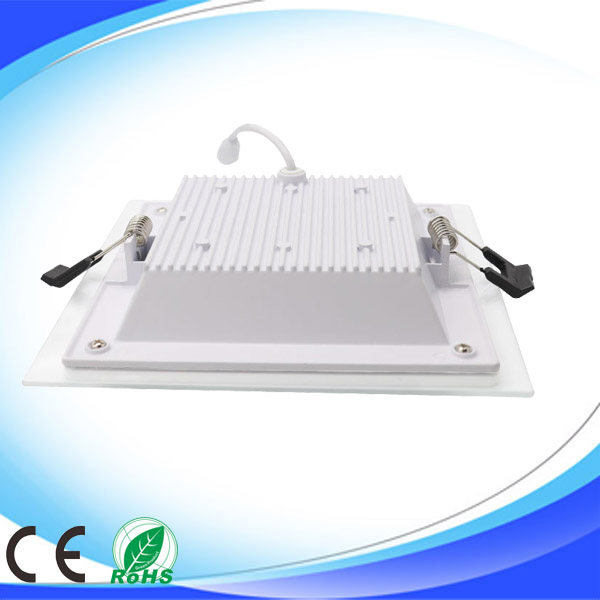

square led ceiling recessed lamps

FAQ of led square downlight lamps

Q1:Can I have a sample order for your products?

A: Yes, we welcome samples order to test and check quality. Mixed samples are acceptable.

Q2:Can I print my Logo on LED bulb products? And can I have color box with my LOGO?

A: Yes. You can have your own color box and print your Logo on the product. Before the printing we will first check with about the design.

Q3:How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system and we control the defective rate less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. Then for defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
