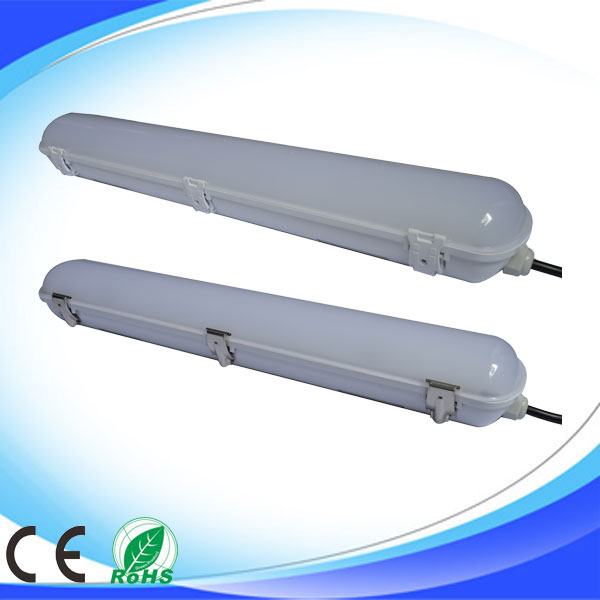

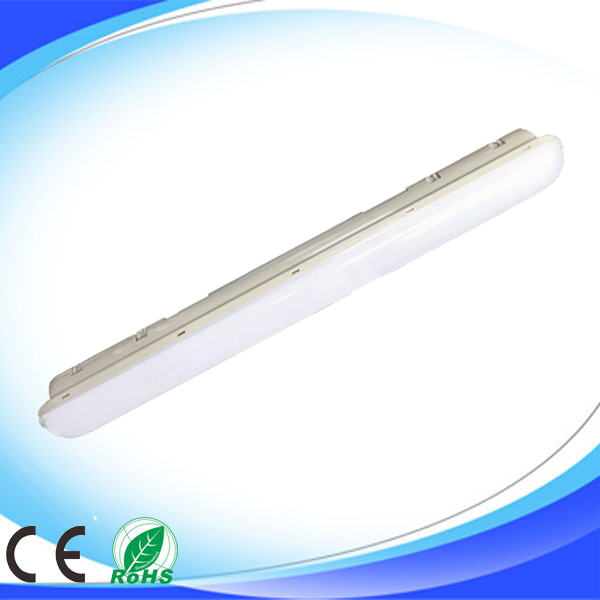

tri proof led light 1200mm 20w 30w 40w 50w

tri proof led light 1200mm 20w 30w 40w 50w

IP65 led tri-proof light is ok to do Microwave聽 motion sensor,emergency,1-10V Dimmable

  • Description

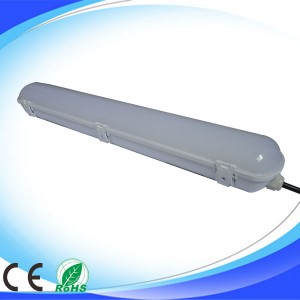

  • 20W 600mm Waterproof IP65 led tri-proof light
  • Inquiry

tri proof led 1200mm is avaiable in 20w 30w 40w 50w,Microwave聽 motion sensor,emergency,1-10V Dimmable are avaiable

tri proof led 1200mm(feature)

1.wattage: 20w 30w 40w 50w available

2.Light Source:聽SMD5730聽LED聽 120pcs,168pcs,240 pcs, 312 pcs

3.Item Type:tri proof led 1200mm ip65

4.size:L1200mm*80*62mm聽 聽

5. Voltage:聽200-240V /50-60hz聽

6.lumens:聽2300lm, 3450lm ,4600lm,5750lm

7.material: PC body+pc cover

10.ip grade: IP65 waterproof

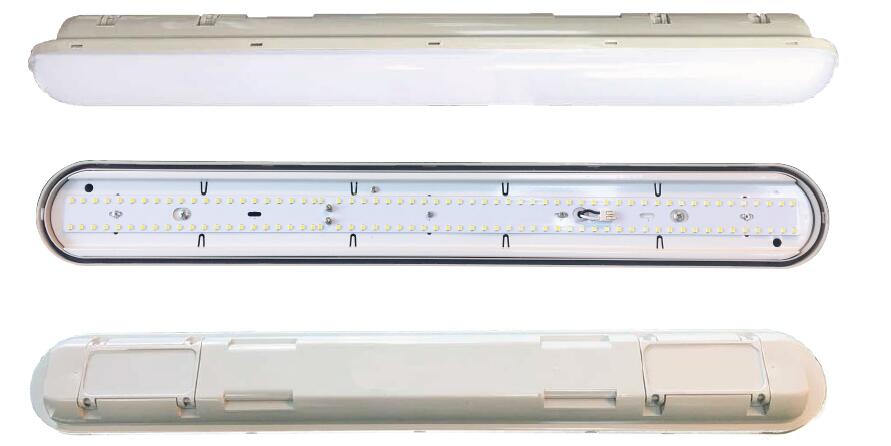

Detail picture and size drawing

tri proof led

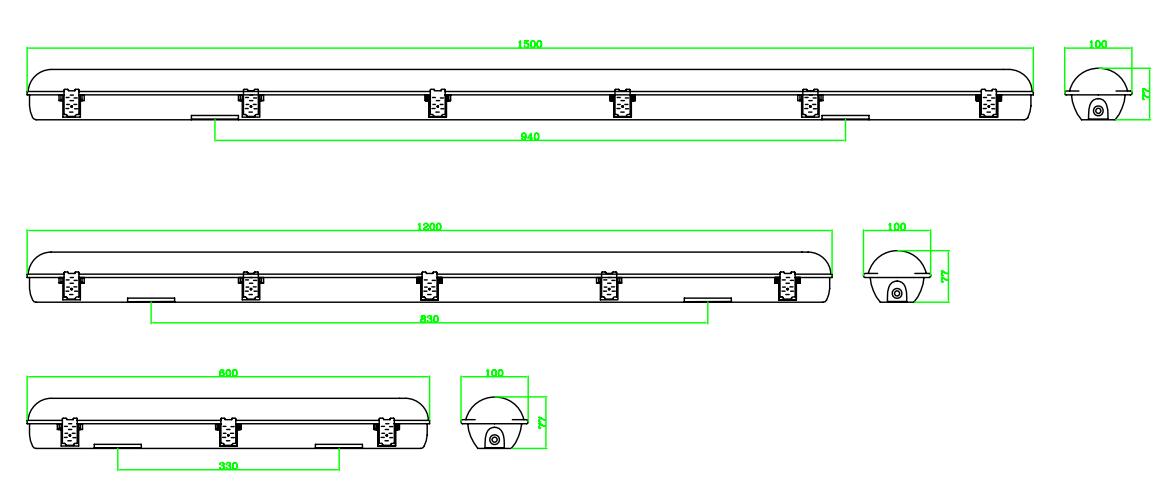

tri proof led size drawing


1.High quality full PC聽body with better light transmittance pc cover

2. Aluminum good for heat dissipation,better than iron plate

3.high brightness for waterproof IP65 led tri-proof light, reach 110lm/w

4.using good brand driver(lifud or philps) to ensure quality

5.Power factory:>0.9

6.CRI: > 80

7.widely working temp:聽聽-30鈩 ~+40鈩

Microwave motion sensor tri proof led

1. voltage: ac200-240v/50-60hz

2.rated capacitive load:800W(inductive),1200W(resistive)

3.power consumption:<0.5W(standby),<1W operation

4.Detection zone: Max(DXH):16m*15m

5.Detection sensitivity: 10%/50%/75%/100%

6.hold time: 5s & 30s & 90s & 3min & 20min

7. stand by dimming levl: 10% / 20 % /30%/50%

8.mounting height: 15m max

9.daylight sensor: 2 lux / 5 lux / 10 lux / 25 lux / 50 lux/ 100 lux / disable

10.stand-by period: 0s / 5s/5min/10min/30mins/1hours/disable

11.motion detection: 0.5-3m/s

12.detection angle: 150 degree,(wall installation), 360 degree (ceiling installation)

Emergency for tri proof led

input voltage: ac220V-240v/50-60hz

Emergency time: >1.5H/3h

Emergency power: 12w or 3w

battery specification: 18650 Li-ion 12v/2.5A

Emergency switching time:<1 second

charging time: <12H

Produce time:

1.for sample.5-7 days.聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽2.if mass: 7-10 days

Payment term

accept T/T or western union or paypal

Packaged information(1200mm 40w tri proof led)

carton size: L1230x270x240mm, 9 pcs in one carton,

Gross Weight : 12.3KG/carton

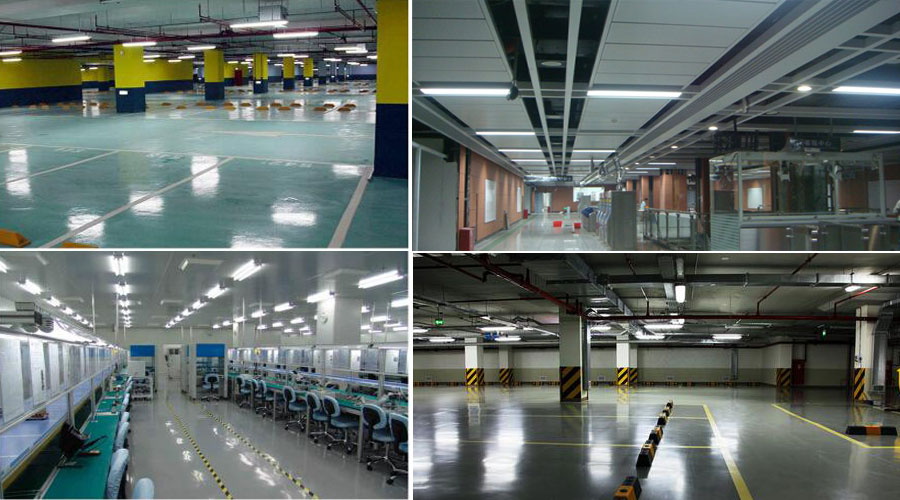

widely used in less-efficient fluorescent strip lights in car wash operations.packing garages,industrial environments and stairwells and so on
