20W Led corn lamp(YC-YM-20)

20W Led corn lamp can replace 42w  PLT Compact lamp

offer G24 2 pin & G24 4pin

  • Description
  • 20W Led corn lamp(YC-YM-20)
  • Inquiry

Product Description

20W Led corn lamp(YC-YM-20)(led compact lamp)

  • Model Number:YC-YM-20
  • LED Light Source:epistar 2835
  • Input Voltage(V):85-265
  • Lamp Power(W):20
  • Lamp Luminous Flux(lm):2000
  • Lamp Luminous Efficiency(lm/w):100
  • CRI (Ra>):85
  • Beam Angle(°):360
  • Working Temperature(℃):-20 – 60
  • Working Lifetime(Hour):50000
  • IP Rating:IP55
  • Certification:C-tick, CE, EMC, ETL, LVD, RoHS
  • Place of Origin:China (Mainland)
  • Color Temperature:Warm white/ neutral white/cool white
  • Material:Aluminum alloy+ New-style PBT material cover
  • Power:Built-in isolated constant current power
  • Radiator:Adopt aluminum alloy profile radiator
  • ESD:more than 4000v
  • Input Voltage:85-277V
  • Lamp Holder:G24D/G24Q/G23-2/E27/E26/E14/B22
  • Warranty:3 YEARS
  • 20W led corn lamp replace 42W PLT compact lamp

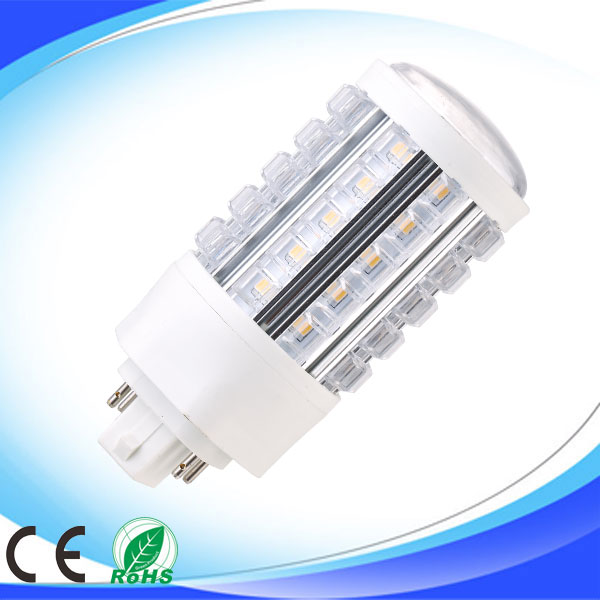

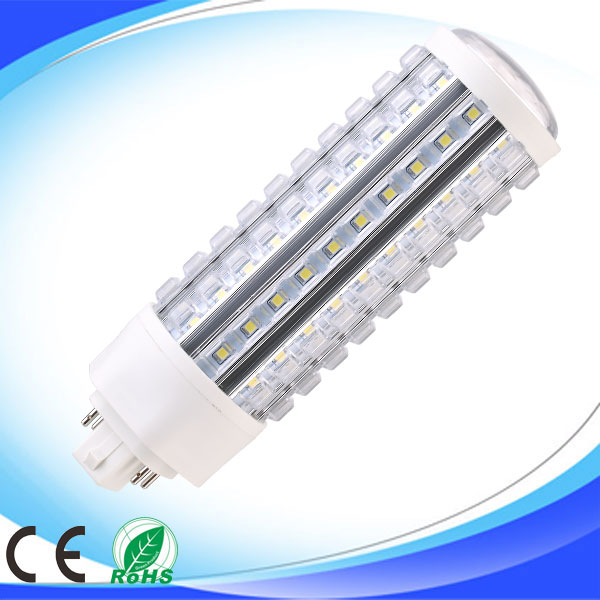

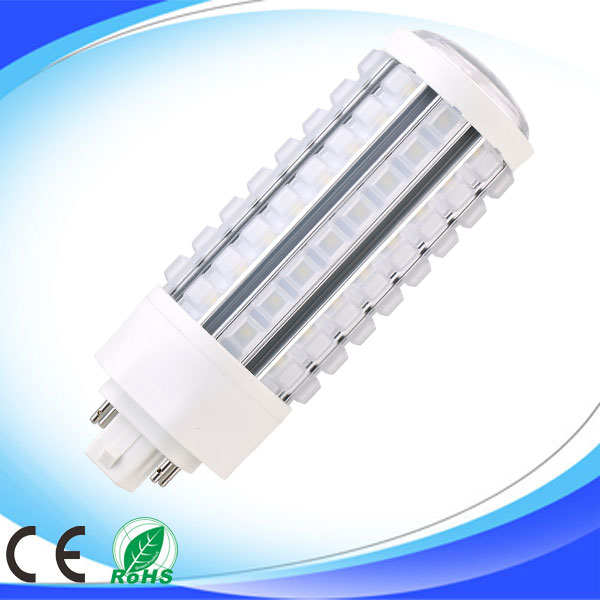

  • more clear picture for 20W Led corn  lamp

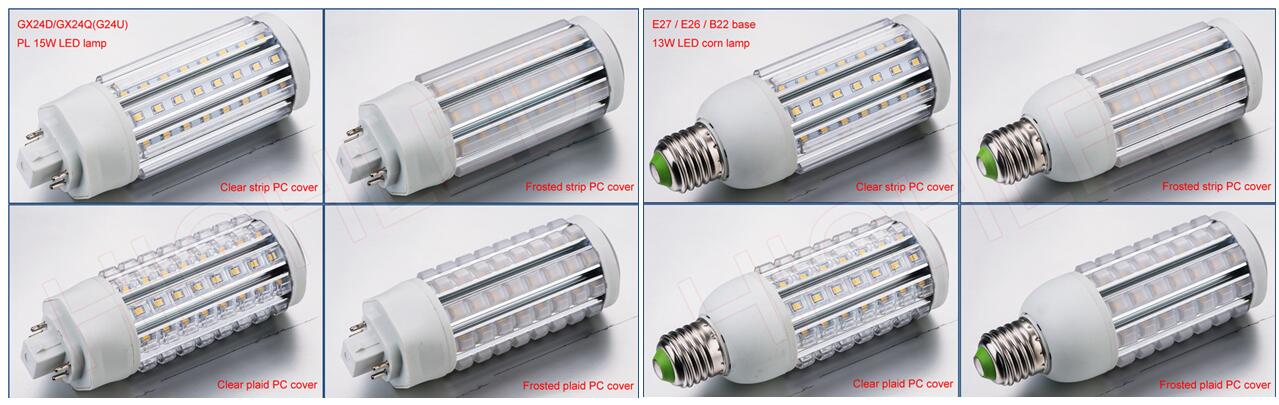

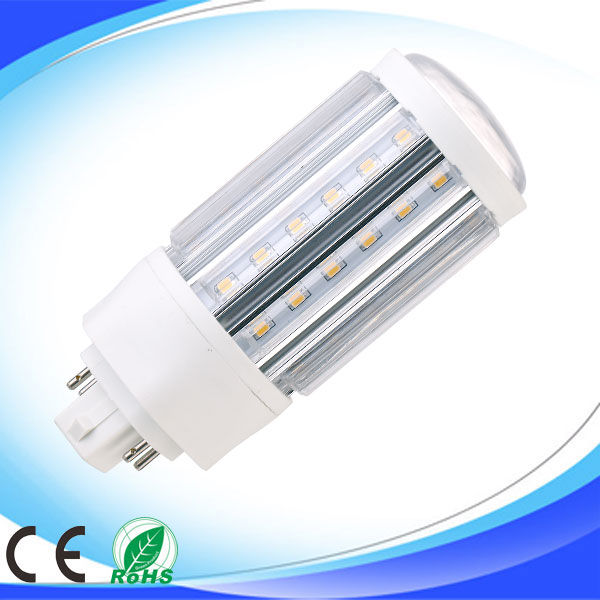

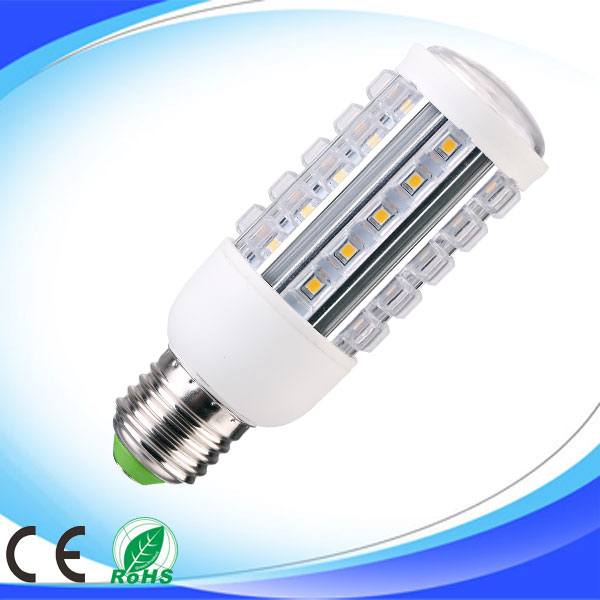

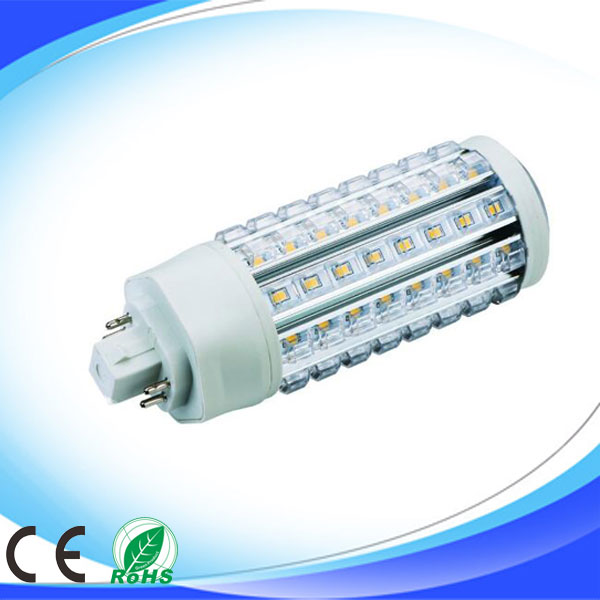

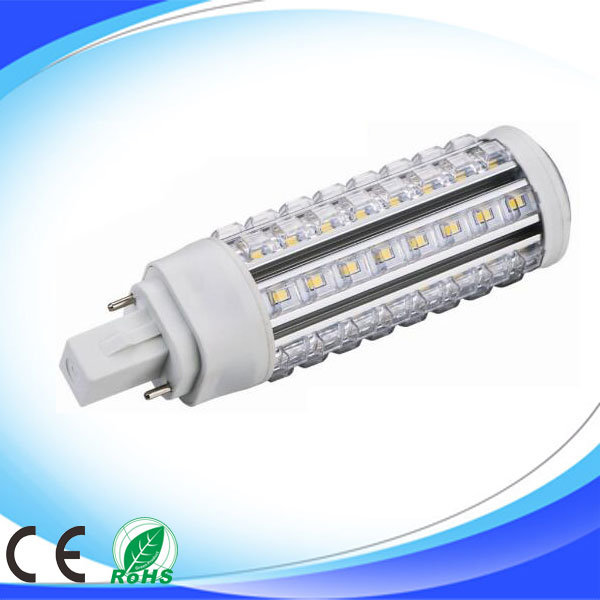

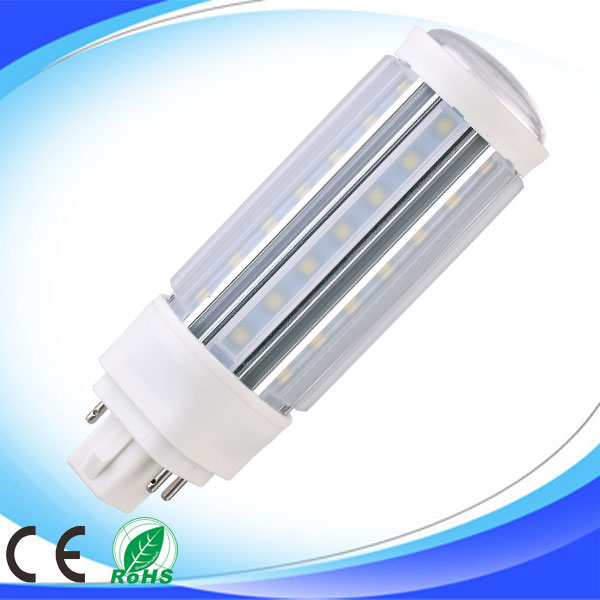

corn light

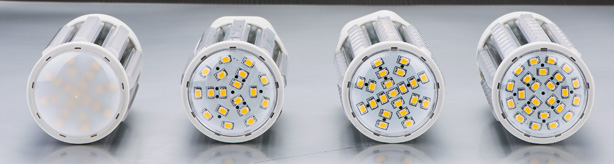

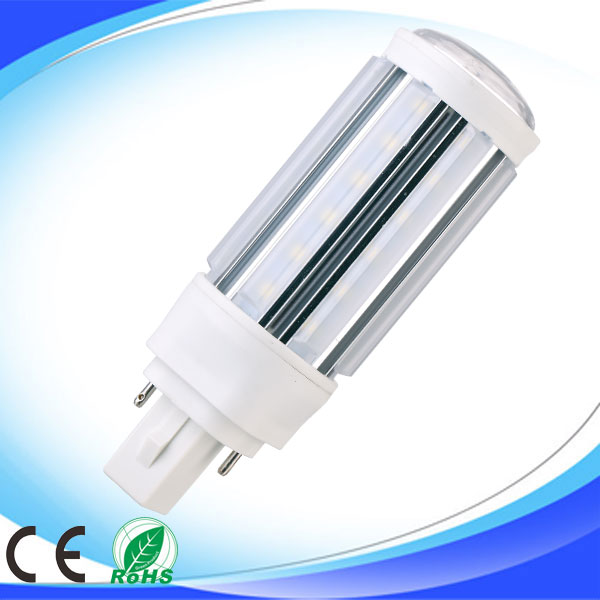

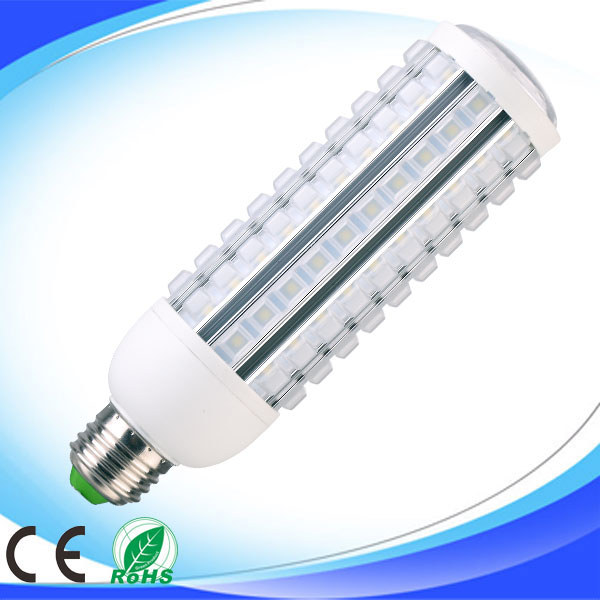

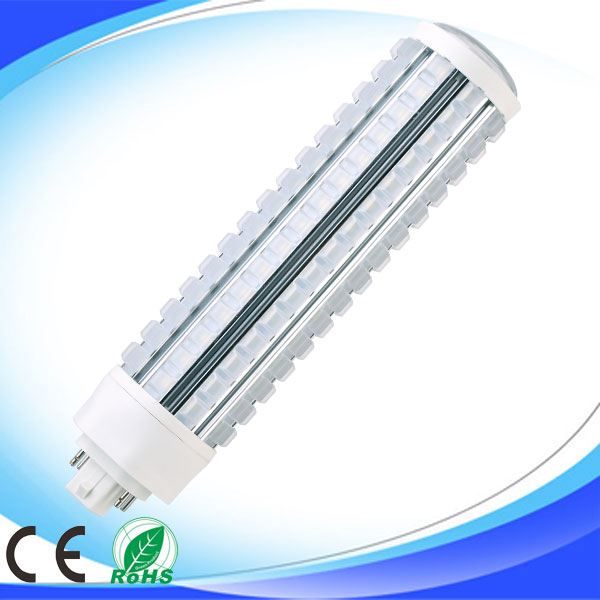

Led corn lamp  series

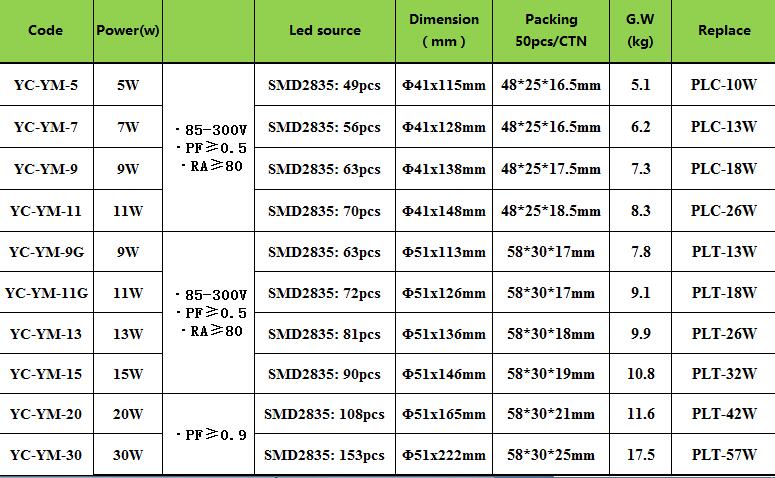

all corn light

Led corn lamp advantage

*The biggest characteristics for this series is anti glare, anti ageing, high brightness,low attenuation,long life;

*The Heat Sink is Manufactured from 6063 High Quality pure Aluminum ;

*The lamp body plastic part adopts G20 environmental protection PBT material;

*Lens with light diffusion environment protection PC material,Flame retardant, resistance to temperature ≥130℃;

* Driver : High safety performance isolation power source,approved EMC,The output voltage is less than 36V,Very safe to human body;

* Colour temperature:2800-3000k; 4000-4500K; 6000-6500K;

*The G24 led corn lamp base can be choose: E27,E26,E40,E39,B22,E14,GX23,G23,G23-2,G24D-1-2-3; G24Q-1-2-3;GX24D-1-2-3-4; GX24Q-1-2-3-4;

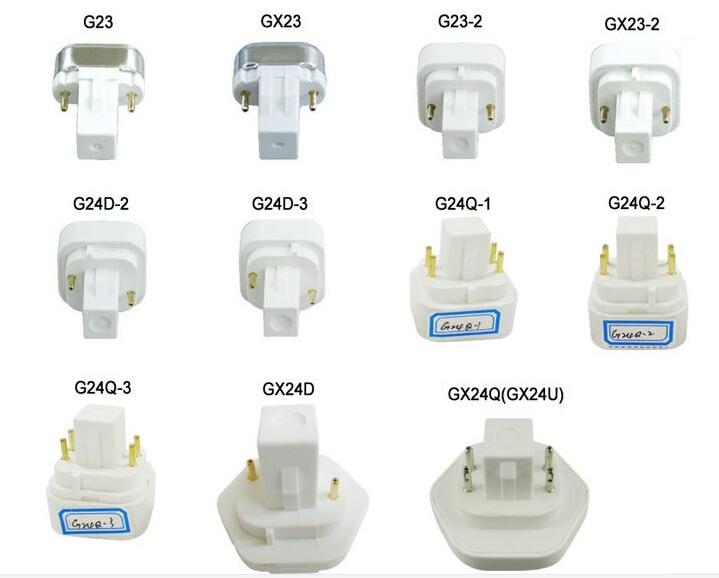

base type cornlight


*G24 Led corn lamp Application:

Great Energy Efficient Retro-Fit Replacement for the Fluorescent PL Lamp and CFL for indoor lighting or garden lights.

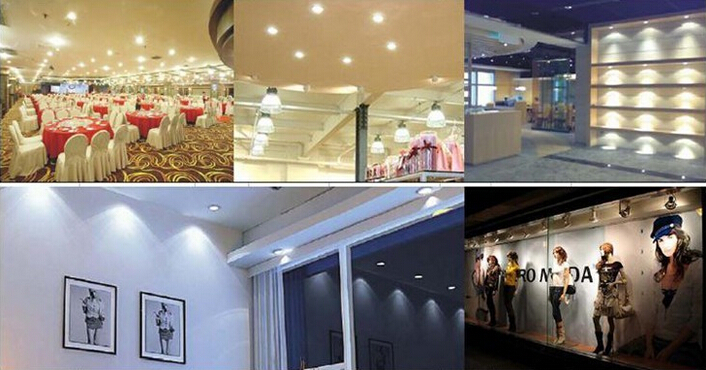

corn light case (2)
